Precision Challenges in High-Speed Hot Melt Slot Die Coating
Inside a high-speed medical manufacturing facility, a continuous web of ultra-lightweight nonwoven fabric advances through a multi-layer lamination line at three hundred meters per minute. The production goal requires applying an incredibly thin, continuous layer of hot melt adhesive to secure a fluid barrier film without compromised spots or fluid leaks. At these operational speeds, even a fractional variance in fluid pressure or a one-degree drop in temperature across the machinery lips will cause immediate streaking, ruining thousands of meters of technical material.
In modern web conversion processes, finding the exact balance between fluid dynamics, precise thermal control, and substrate tension remains a primary challenge for engineering teams. Achieving a uniform, defect-free adhesive layer requires advanced hardware configuration and a deep understanding of fluid behavior. This technical discussion addresses these fundamental challenges through the principles of professional hot melt slot die coating, demonstrating how optimized machinery design elevates manufacturing precision across the hygiene, medical, and industrial filtration sectors.
The Technical Fundamentals of Slot Die Coating and High-Precision Challenges
Slot die coating operates as a pre-metered coating methodology, delivering a highly precise fluid volume onto a moving substrate. Unlike self-metered systems where coating thickness depends on substrate speed or blade pressure, pre-metered slot die systems ensure that all fluid pumped into the internal flow channel is distributed evenly through a precisely machined die gap. This process makes the methodology uniquely suited for solvent-free hot melt adhesives, enabling thin, highly consistent coating weights without the risk of solvent evaporation or environmental hazards.
However, achieving high precision introduces critical operational challenges. The primary obstacle centers on maintaining uniform temperature control across the entire width of the coating die. Because hot melt adhesives exhibit high temperature-viscosity sensitivity, minor thermal variations inside the die can alter fluid viscosity, causing uneven distribution or gel formation. Additionally, any micron-level imperfection or wear on the die lips leads directly to vertical streaking on the substrate. Fluid delivery systems must also manage pressure variations from the feeding pumps, as minor pressure fluctuations directly impact the cross-web coat weight distribution. To overcome these precise thermal and fluid limitations, engineering teams require highly refined mechanical systems. It is within this demanding technical landscape that NDC Engineering & Manufacturing (Fujian) Co., Ltd has engineered its specialized hardware, converting fluid dynamics theory into repeatable production line performance.
Accumulated Process Insights: Advancing from Standard to Medical-Grade Applications
Managing these precise variables depends heavily on long-term operational experience. Since its establishment in 1998, NDC Engineering & Manufacturing (Fujian) Co., Ltd has focused on developing specialized adhesive application machinery. Over nearly three decades, NDC has designed and supplied thousands of industrial systems deployed across more than 30 countries. This sustained focus has generated an extensive empirical database containing optimized processing parameters for an array of challenging substrates, including ultra-lightweight nonwoven fabrics, delicate PE films, and high-density industrial filter media.
In specialized sectors like medical manufacturing, production requirements demand strict structural integrity. Components such as surgical drapes, isolation gowns, and wound dressings require low coat weights combined with exceptional uniformity to maintain fluid barriers while preserving breathability. NDC addresses these demanding requirements through specialized breathable hot melt slot die coating systems. These solutions eliminate common processing defects, such as adhesive strike-through on porous nonwovens or surface streaking on thin barrier films, ensuring dependable product performance in critical environments.
Hardware Integration for High-Precision Performance: Analytical Case of the NTH1750

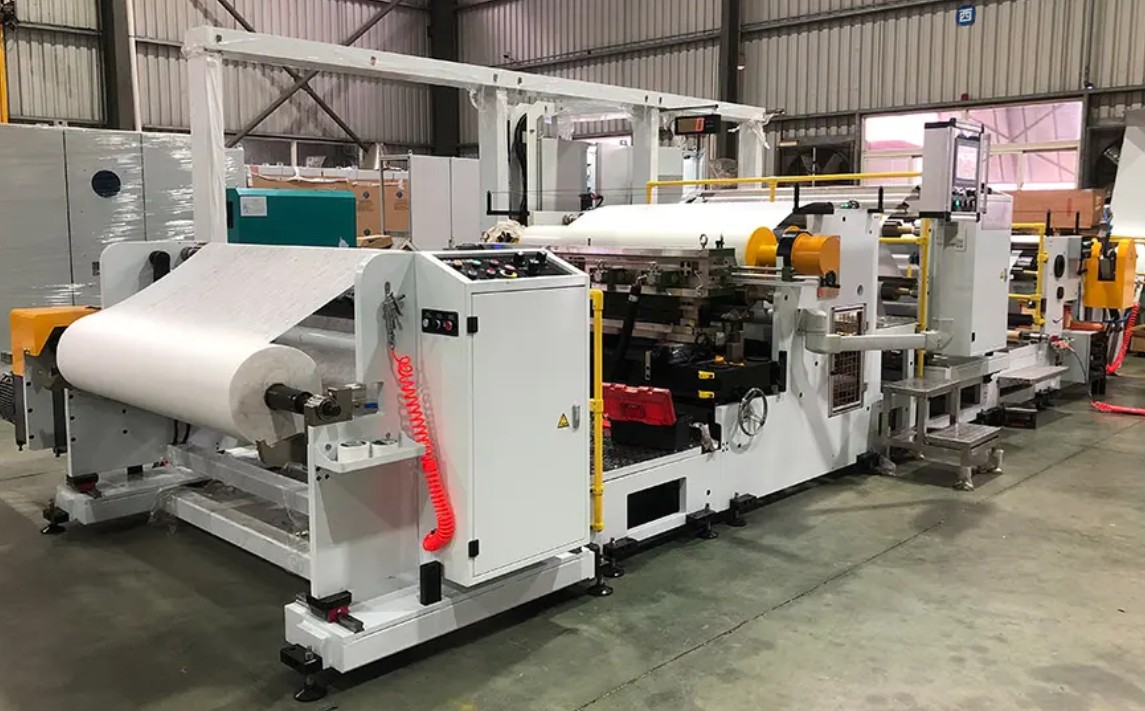

Examining specific hardware configurations demonstrates how these theoretical precision goals are achieved in practical manufacturing. The NTH1750 hot melt adhesive coating machine illustrates this execution through its integrated mechanical systems. To maintain consistent volumetric flow, the system incorporates high-precision gear pumps sourced from premium European brands. Each pump works with an independent temperature control circuit to keep adhesive viscosity perfectly stable throughout the delivery line. This configuration allows operators to tightly manage the Coefficient of Variation (CV) of the coating weight, ensuring exceptional uniformity across the web.

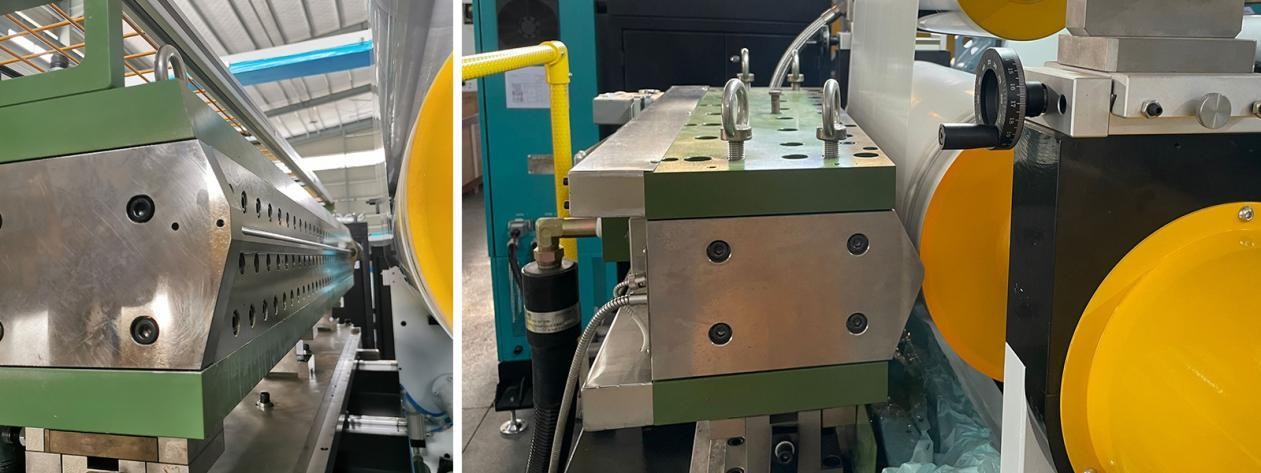

The construction of the die assembly also plays a fundamental role in maintaining long-term precision. Machined from high-grade, wear-resistant materials designed to withstand sustained high temperatures, the die structure resists thermal deformation under continuous pressure. External multi-zone heating modules maintain a highly uniform temperature profile along the die body, eliminating localized cool spots and preventing adhesive carbonization. These design features protect the finished product from surface blemishes or structural defects.
To ensure stability at elevated manufacturing speeds, the NTH1750 features an advanced industrial automation architecture. Controlled by a Siemens PLC system integrated with closed-loop vector-converter tension controls, the machinery maintains stable web handling at production rates ranging from 250 to 300 meters per minute. Angle sensors and proportional valves constantly track and adjust substrate tension, keeping material stretching or wrinkling to a minimum, even during high-speed operations.
Application Engineering: Configuring Systems for Technical and Hygiene Media
Selecting the correct coating method requires evaluating substrate traits alongside end-product functional goals. Processing line configurations change substantially depending on whether the target material is a porous textile or a sensitive barrier film.
Breathable Medical Laminates: Implementing a breathable professional hot melt slot die coating setup allows discrete adhesive patterns that secure multi-layer nonwoven laminates without sealing microscopic pores, preserving natural breathability alongside reliable fluid protection.
Porous Nonwoven Management: Porous spunbond nonwovens handle mechanical tension well but present high risks of adhesive strike-through. Managing these substrates requires precise control over adhesive open time and cooling rates to prevent excessive core absorption.
Thin Barrier Film Processing: Non-porous films like breathable PE are vulnerable to thermal distortion under mechanical stress, requiring high-precision closed-loop micro-tension tracking at unwind and rewind stations to prevent stretching.
Continuous High-Speed Handling: Utilizing dual-shaft automatic splicing winders with turret rotation ensures seamless roll changes while maintaining a constant web tension profile, preventing line speed drops or tension disruption.
Pre-Production Verification and Modular Design Advantages
Before installing equipment on the factory floor, validating specific adhesive behaviors on intended substrates reduces technical risks. NDC Engineering & Manufacturing (Fujian) Co., Ltd addresses this through its advanced hot melt adhesive application laboratory located in the Asia-Pacific region. This testing facility allows manufacturers to run material trials, test specific coat weights, and dial in precise process parameters before finalizing equipment configurations. This empirical testing confirms that the selected machinery setup will meet specific product standards.
Furthermore, implementing a modular engineering approach provides significant flexibility when building industrial machinery. Utilizing standardized assembly modules allows NDC to customize coating widths, adjust overall line layouts, and integrate specific slitting or edge-trimming units to match existing manufacturing environments. This modular system simplifies initial installation, accelerates commissioning timelines, and provides a clear path for future hardware upgrades as production needs change.
For detailed technical specifications and complete equipment configurations,please visit the official resource at https://www.ndccn.com/
