NTH1400 Hot Melt Adhesive Coating Machine (UV Hot Melt Adhesive）
is a precision coating line specifically designed for both UV hot melt adhesives and conventional hot melt adhesives. Integrating UV curing technology, the machine is particularly suitable for the large-scale production of high-end adhesive products requiring exceptional temperature resistance and high peel strength.

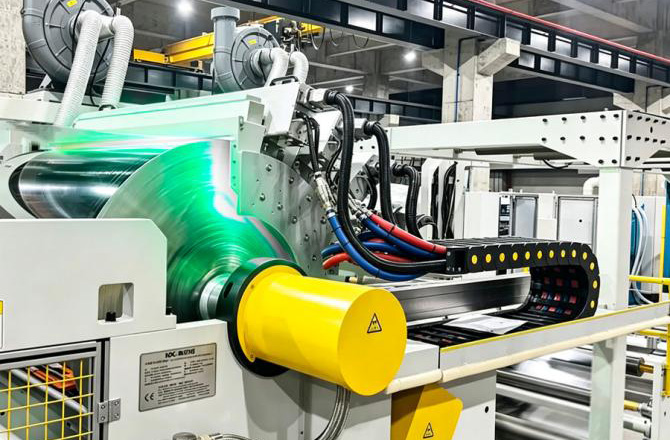

• Integrated UV Lamp Curing System — Supports efficient UV curing for UV hot melt adhesive applications.
• Precision Scratch-Free Coating — Advanced coating head ensures high coating precision and consistent coating quality.
• EPC Web Guiding — Photoelectric and ultrasonic edge guiding are available for different types of materials.
• Siemens Closed — Loop Tension Control — Provides precise stable tension control throughout the production process.
• Fully Integrated Siemens Control System — Ensures reliable, intelligent and stable machine operation.
• Drum Unloader System — Designed for for continuous, automated feeding.
• Buffer Tank: A gear pump specially designed for high-viscosity UV adhesive is installed inside the buffer tank to improve glue flowability and delivery accuracy.
• Multi-Product Production Capability — One machine supports a wide range of adhesive products and substrate materials.
• High-Speed & Wide-Web Production — Supports maximum 200 m/min production speed and web widths up to 1300 mm.
• Solvent-Free & Environmentally Friendly Production — Enables efficient solvent-free coating while maintaining high coating quality and long-term operational stability.
• Versatile Application Range — Suitable for high-end self-adhesive labels, PET/BOPP adhesive tapes, paper-based and fabric-based adhesive materials.

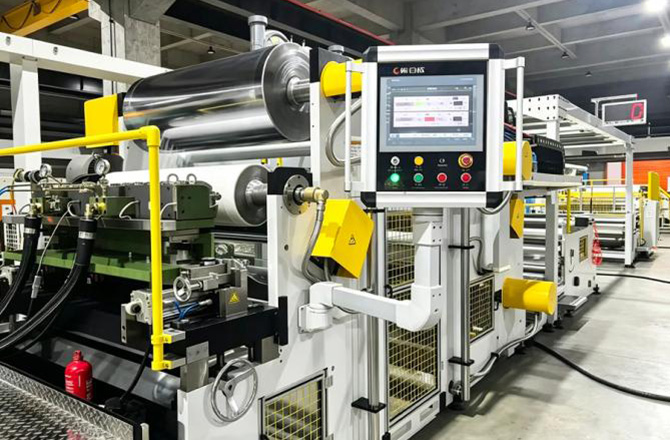

| Coating Method | Slot Die with Rotary Bar & Slot Die | ||
| Material Width | ≤1300mm | Adhesive Type | UV Acrylic Adhesive |
| Coating Width | ≤1280mm | Web Guider ( EPC System ) | 2 sets |
| Coating Weight | 15~60g/m² | Chilling Unit | 2 sets |
| Max. Unwinding / Rewinding Diameter | 1200 mm | Glue Melter | 500 L × 1 set, Drum melter× 1set (NDC Brand) |
| Maximum Production Speed | 200m/min | Total Power | 160kw |
| Dimensions | 15500×5000×2600 mm | Machine Weight | 22T |
| PLC & Touchscreen | Siemens | Motors & Inverters | Innomotics （Siemens） |

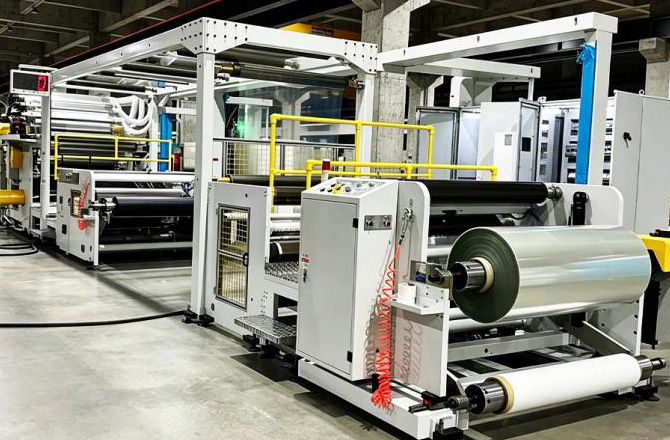

| Unwinding & Rewinding Unit | Single-Station Manual Splicing | UV Lamp Curing System | Chinese / European Brand （Optional） |
| Tension Control System | Siemens Vector Variable-Frequency Drive Tension Control System | ||
| Raw Materials | Thermal Paper, Chrome-Coated Paper, Kraft Paper, Coated Paper, Glassine Paper, PET Film, BOPP Film, PP Film, Fabric-Based Materials | ||

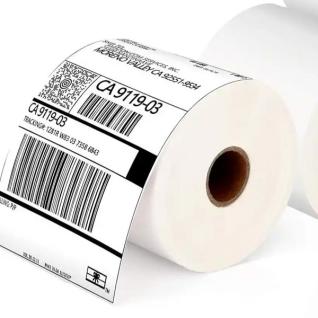

● Self-Adhesive Labels — Express Labels, Linerless Labels, Thermal Paper Labels, PET Labels, and other specialty labels.

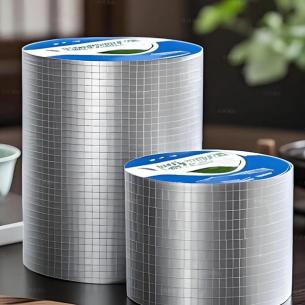

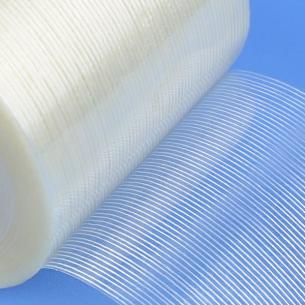

● Adhesive Tapes — PET Tapes, BOPP Tapes, Kraft Paper Tapes, Double-Sided Tapes, Fiberglass Tapes, Construction Tapes, Wire Harness Tapes, Medical Tapes, Fabric Tapes, and more.
What can we do more?
Beyond our standard configurations, NDC works closely with customers to understand their specific production requirements and provide tailored equipment designs and customized solutions wherever technically feasible. From engineering and commissioning to ongoing technical support and after-sales service, we remain committed to providing responsive, responsible, and professional support throughout the equipment lifecycle, helping customers maintain stable production and operate with greater confidence and peace of mind.
